Deploy an Intercom Endpoint
Description


By creating an Intercom Endpoint in COGNIGY.AI, you can utilize the power of chatbots to respond to customers outside of your agents' working hours.
This tutorial covers the necessary steps for creating and connecting an Intercom Endpoint. If you want to get information about assigning a Flow to the Endpoint and setting up the Data Management see Endpoints.
Requires an Intercom Subscription
This guide assumes that you are already have an active Intercom subscription.
Requires a free Intercom user
You need to have an Intercom user that you can use for the bot. The bot will use this user for its replies.
Two Step Preparation Process


1 Create an Intercom Endpoint in COGNIGY.AI.
2 Integrate the Intercom Endpoint with your Intercom Platform
1 Create an Intercom Endpoint


The first thing you need to do is to create an Intercom Endpoint in COGNIGY.AI. In order to do this, navigate to your Project, click on the button in the lower left corner and create an Endpoint.


Creating an Intercom Endpoint
After creating your Endpoint, you should be navigated to the Endpoint configuration of your Intercom Endpoint. Here you need to set the Flow that the Endpoint should point to, and you can change the NLU Connector of the Endpoint.


A Created Intercom Endpoint
Now that you have created the Intercom Endpoint, all that is left to do is to connect it to Intercom. The Intercom Endpoint contains Intercom Settings
which are three settings we need in order to connect to your Intercom Platform. The settings are:
- An Access Token
- The admin ID of your bot
- The Hub Secret for your Webhook
The next chapter will describe where you can find these settings in your Intercom Platform.
2 Integrate the Intercom Endpoint with your Intercom Platform


Requirements
Endpoint URL
2.1 Creating an App in the Developer Hub
In order to connect your Intercom Endpoint to your Intercom Platform you first have to create an app with a webhook in the Intercom Developer Hub
so that all messages sent to your Intercom is also sent to your COGNIGY.AI Flow. Do this by opening Settings > Developers
in your Intercom Platform and clicking the Developer Hub
link.


Link to the Developer Hub


Navigating to the Developer Hub
You are now ready to create an app. Click on the New app
button and fill in the necessary information into the form:


Create Intercom App Form
2.2 Creating the webhook
In the created app, you need to navigate to the webhook page. To create the webhook, you first need to copy the EndpointURL of your Intercom Endpoint which will be used as the request endpoint URL. You can find the EndpointURL in your Intercom Endpoint in the COGNIGY.AI User Interface.


Create webhook
You then need to select the topics you want to subscribe to. Here you have to select the conversation.user.created
and the conversation.user.replied
topics. Remember to click on the Save button in the top right corner
2.3 Getting the access token
You now have to navigate to the Authentication
page. Here you can optionally edit the page to disable some permissions that the Intercom Endpoint don't need - the only permission the Endpoint needs is the "Write Conversations" and "Read Conversations" permissions. After changing permissions, you need to copy the Access Token
at the top of the page and save it in your Intercom Endpoint in the COGNIGY.AI User Interface.


Getting the Access Token


Saving the Access Token in the Endpoint
2.4 Getting the Hub Secret
You can now get the Hub Secret (also called Client Secret) from your Intercom App. To find this, navigate to the Basic information
page in the Intercom App and copy the Client Secret. You have to insert in your Intercom Endpoint in COGNIGY.AI.


Getting the Client Secret


Inserting the Hub Secret
2.5 Getting the Bot User ID

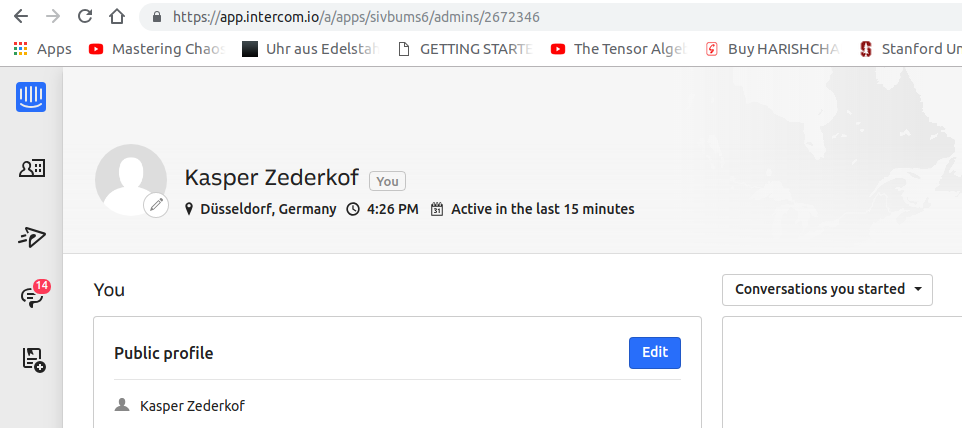

The COGNIGY.AI bot needs its own Intercom user in order to be able to respond to messages. This user will be the user that your customers interact with in the Intercom Webclient. You therefore need to either use an existing user on your Intercom team or create a new user. After creating the user, navigate to the user's profile in Intercom and copy the admin ID. The admin ID is the 7-digit number in the page URL of the profile, e.g. 2672346
in the URL https://app.intercom.io/a/apps/<redacted>/admins/2672346
.


Getting the admin ID of the bot
After retrieving the admin ID, you need to paste it into the Bot User ID
setting in the Intercom Settings
of your Intercom Endpoint.


Saving the Bot User ID
You are now finished connecting your Intercom Endpoint with your Intercom Platform! Open your Intercom Webclient on your website and send a message - you will now get a reply from your Flow. You can read the next guide for tips and tricks related to managing the bot's response times and more.
