Deploy a Messenger Endpoint

Description

With the implementation of a Messenger Endpoint you can easily connect your Facebook Messenger Bot with COGNIGY.AI.

This tutorial covers the necessary steps for creating and connecting a Facebook Messenger Endpoint. If you want to get information about assigning a Flow to the Endpoint and setting up the Data Management see Endpoints.

Three Step Preparation Process

1 Create a Facebook Page on Facebook
2 Create a Facebook App in the Facebook Developer Center
3 Create and Configure a Messenger Endpoint on COGNIGY.AI

1 Create a Facebook Page

Requirements
Facebook Account

1.1 Pages Overview


Log into your Facebook Account. Then on your landing page click on the Pages entry in the left navigation menu (see Figure 1.1)

Figure 1.1: Menu Entry for the Pages OverviewFigure 1.1: Menu Entry for the Pages Overview

Figure 1.1: Menu Entry for the Pages Overview

1.2 Create a Facebook Page


Click on the Pages link and you'll see an overview of your Facebook pages. Create a new one by clicking the green button in the top navigation bar (see Figure 1.2). You can choose any kind of page you want (business or community). Give it a name and a category and you're ready for step 2.

Figure 1.2: Create Page ButtonFigure 1.2: Create Page Button

Figure 1.2: Create Page Button

2 Create a Facebook App

Requirements
Facebook Account
Facebook Page

2.1 Add new App

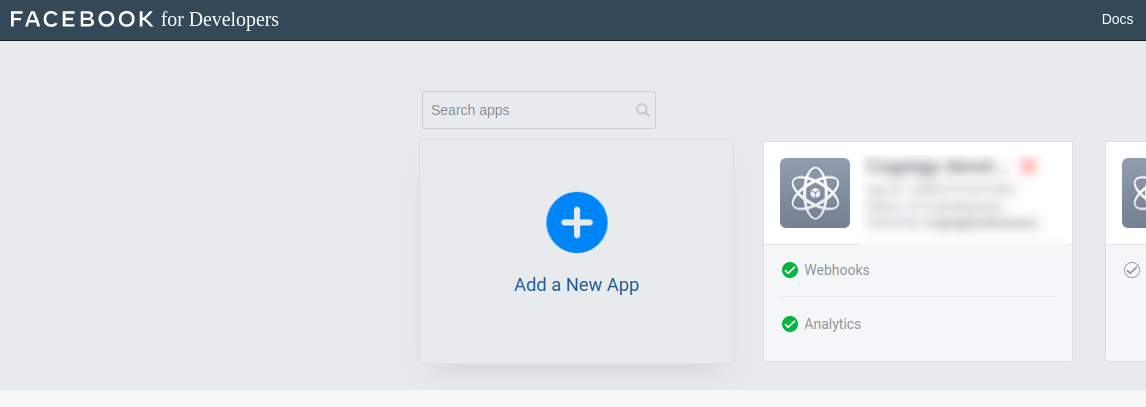

First, you've to log into your Facebook account. Then, after getting redirected, click on Manage Apps (see Figure 2.1a) and select Add a New App (see Figure 2.1b)

Figure 2.1a: Menu entry for Manage AppsFigure 2.1a: Menu entry for Manage Apps

Figure 2.1a: Menu entry for Manage Apps

Figure 2.1b: Apps menuFigure 2.1b: Apps menu

Figure 2.1b: Apps menu

A prompt opens for creating a new Facebook App (see Figure 2.1c). Create the App entering the necessary information in the requested fields.

Figure 2.1c: Create New App PromptFigure 2.1c: Create New App Prompt

Figure 2.1c: Create New App Prompt

2.2 Add the Messenger Product


After creating the Facebook App you'll see an overview of the available products. Select Messenger by clicking set up (see Figure 2.2)

Figure 2.2: Messenger ProductFigure 2.2: Messenger Product

Figure 2.2: Messenger Product

2.3 Get the Page Token


If you're on the overview page of your Facebook App go to the settings of the Messenger product of your app (see Figure 2.3a).

Figure 2.3a: Navigation Menu for ProductsFigure 2.3a: Navigation Menu for Products

Figure 2.3a: Navigation Menu for Products

Scroll down to the Access Tokens section and add the page you've created in Step 1 by clicking in Add or Remove Pages. (see Figure 2.3b).

Figure 2.3b: Access Tokens menuFigure 2.3b: Access Tokens menu

Figure 2.3b: Access Tokens menu

After adding the page, press on Generate Token (See Figure 2.3c)

Figure 2.3c: Access token with added pageFigure 2.3c: Access token with added page

Figure 2.3c: Access token with added page

Read the warning and check the "I Understand" box so the token will be revealed, copy the token and click done (see "Figure 2.3d**)

Figure 2.3d: Generate Token menuFigure 2.3d: Generate Token menu

Figure 2.3d: Generate Token menu

Now you good to go to step 3 and set up the Messenger Enpoint with COGNIGY.AI.

3 Create and Configure a Messenger Endpoint

Location: COGNIGY.AI

Requirements
Facebook Page Access Token

3.1 Create a Messenger Enpoint

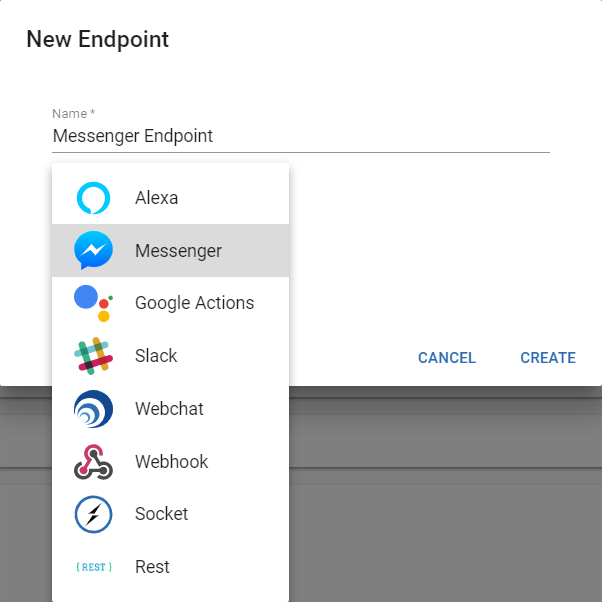

First you have to create an Endpoint of the type Messenger (see Figure 3.1).

Figure 3.1: Messenger Endpoint Creating PromptFigure 3.1: Messenger Endpoint Creating Prompt

Figure 3.1: Messenger Endpoint Creating Prompt

3.2 Configure the Messenger Endpoint


Expand the Facebook Page Setup panel (see Figure 3.2) and paste the saved Page Access Token into the corresponding field.

Figure 3.2: Facebook Page Setup PanelFigure 3.2: Facebook Page Setup Panel

Figure 3.2: Facebook Page Setup Panel

๐Ÿ“˜

Optional Secret Validation

You can add an optional security layer and verify for every message that it was actually sent from Facebook Messenger. To do this, add your App ID and App Secret in the corresponding fields in your Endpoint Facebook Page Setup.

3.3 Get the Endpoint URL


Move to the top of the Endpoint Configuration page and copy the Endpoint URL which is displayed above the General Settings (see Figure 3.3).

Figure 3.3: Endpoint URLFigure 3.3: Endpoint URL

Figure 3.3: Endpoint URL

Final Step: Connect Your Facebook App to the Endpoint

Requirements
Endpoint URL

Switch back to your Facebook App and there to the settings page of the Messenger Product. Scroll to the Webhooks section and click on Add callback URL. A prompt opens and asks for (see Figure 4.1):

  • a Callback URL
  • a Verify Token
Figure 4.1: Webhooks SetupFigure 4.1: Webhooks Setup

Figure 4.1: Webhooks Setup

As the Callback URL paste in the Endpoint URL which you gathered in step 3.3.

The Verify Token is by default cognigy123 but it depends on the installation of your COGNIGY.AI platform (for further information please contact the technical support). Press Verify and save to continue.

After adding the Callback URL you will have a view with details about the webhook (see Figure 4.2)

Figure 4.2: Webhook detailsFigure 4.2: Webhook details

Figure 4.2: Webhook details

Now we need to add "Subscriptions fields", press the Add subscription fields button, a prompt will open (see Figure 4.3) For the Subscription Fields select the messages and messaging_postbacks events. If you want to use referrals, you'll also need to subscribe to the messaging_referrals event.
Select the fields and press save.

Figure 4.2: Edit subscription fieldsFigure 4.2: Edit subscription fields

Figure 4.2: Edit subscription fields

You should be all set up to use the Messenger Endpoint you've created with a Flow of your choice.
